Hole Profiling
Pile Imaging Test

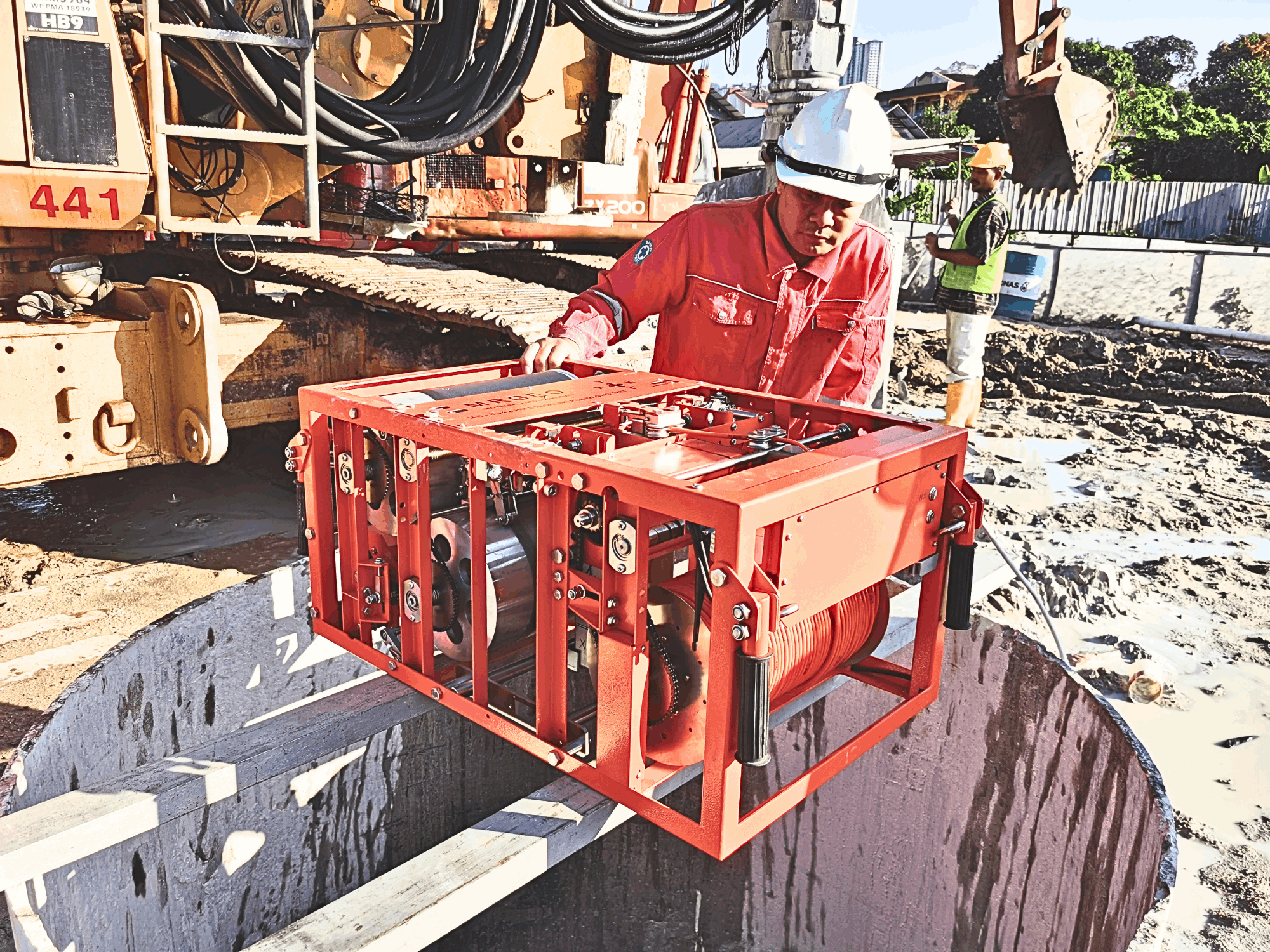

Perform hole profile (or shape) of a drilled bore hole (or spun pile hole) by plotting the hole profiling to verify the pile verticality (or alignment) prior to concrete placement and soil sediment thickness (or slurry cake thickness) at pile tip.

Code Compliance:
ASTM/D8232 (2018)
